So I've done a bit of research, and found some basic jets and settings for the Weber 32/36 carb. Then on a Ford owners website, I found slightly different recommended settings for a 1600 crossflow. What I don't know, is what jets are in my carb - I took it apart in October 2024, wrote them down, then lost the bit of paper...
So on Tuesday, I decided to investigate by taking the top off the carb - first remove the air cleaner, then disconnect the wee choke lever, remove the fuel line and undo the 6 screws holding the top on the carb.

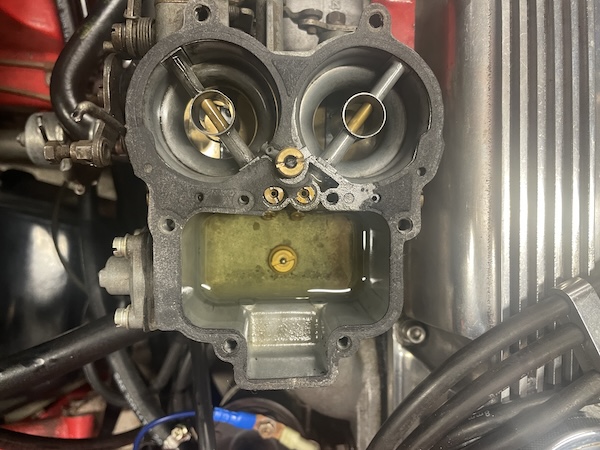

This is the top of the carb, where you can see the two air corrector jets in the top. There are also two main jets in the bottom of the bowl (under
those air jets) and two idle jets in the sides of the carb (not really visible in this photo). I take all of those out, noting exactly which goes
where, and their sizes.

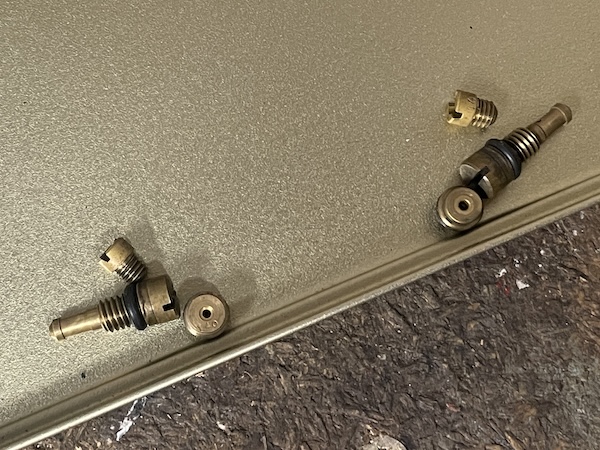

Here's the removed jets for the primary inlet (left hand side) and secondary (right hand side).

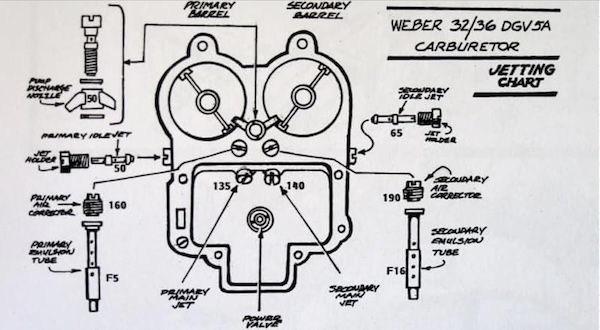

This is a diagram that I found online that shows the position of these jets, and the recommended sizes. I also found a slightly different list of settings on a Ford Owners club website for a 1600 crossflow GT engine - which is what mine is. More on that in a minute.

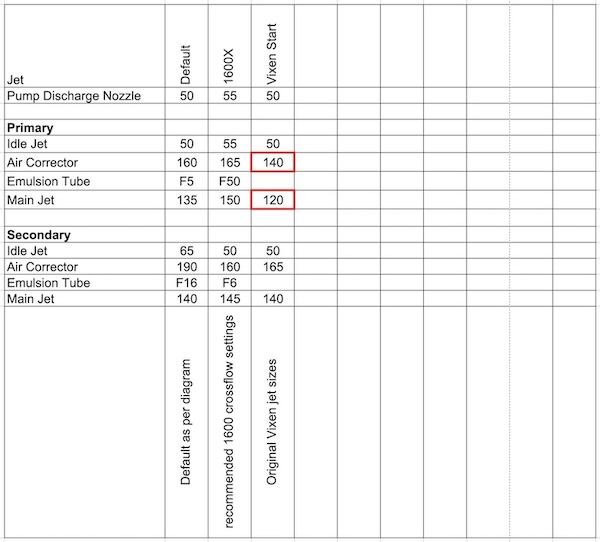

Here's a wee table. Who doesn't love a table, right? (not in the physical sense, obviously, shagging your furniture is not "de rigeur" in polite society). The first column shows the jet settings in the diagram above. The second column shows the settings from the owners club website. Pretty similar, but with a bigger primary main jet and smaller secondary air corrector.
The third column shows the jet sizes that I took out of the Vixen. Much smaller jets on the primary side, slightly more air on the secondary side. I have no idea why they have been set as they are, that's just how I found them.
At this point I have to stop and rack my brain trying to remember how carburettors work. I know that at idle speed, the air corrector and the idle jet work together to meter the amount of fuel reaching the idle mixture screw. My engine is idling with the mixture screw almost all the way in, so that maybe suggests that the air jet isn't big enough?
Also, the primary main jet seems to be much too small - could that be leading to the "flat spot" as the carb transitions from "idle" to "open"?
After much consideration, I decide to leave the secondary jets as they were, but increase the jets on the primary side to the sizes for the 1600 GT.

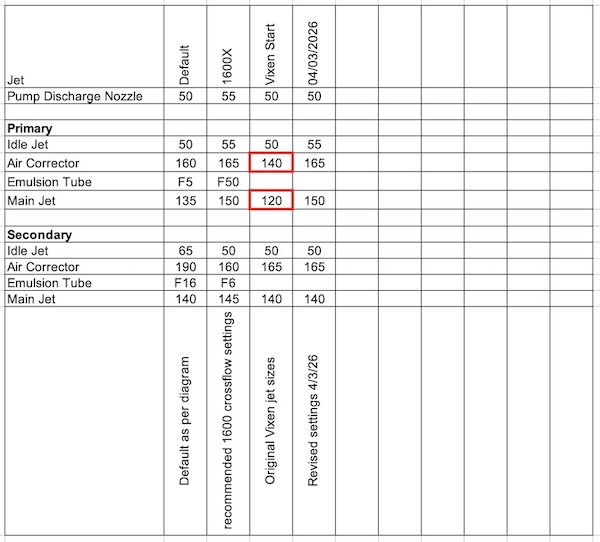

Here's an updated table, that includes the revised jetting that I settled on.

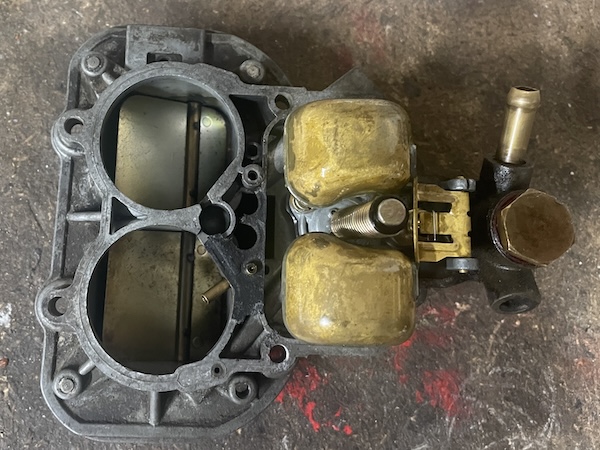

Then I check the float height. Here's the top of the carb upside down with the floats in place.

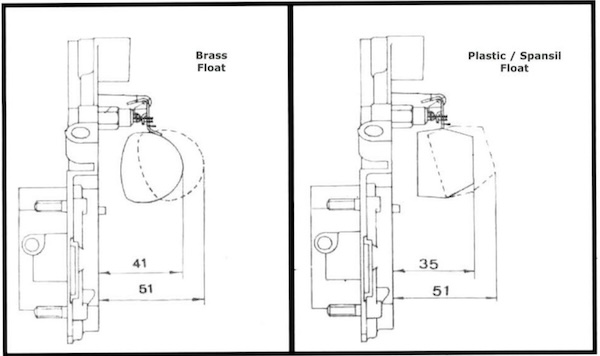

To set the correct float height, you hold the carburettor top vertically so that the tab is just resting on the needle valve. For a brass float, the bottom of the float should be 41mm from the face of the top surface. Then you turn the carb top the right way up so that the float is hanging, and the bottom of the float should be 51mm from the face of the top surface, as shown in the left hand diagram. Mine was about 2mm too low, so the needle valve would be closing slightly too early, which would lead to a slightly weak mixture. I bend the wee tab on the needle ball valve slightly, to set it right.
The diagram on the right is for plastic floats, which are a different shape and more "floaty".
So with that all set, I reassemble the carb, reconnect the choke and replace the air cleaner. I wind out the mixture screw to a starting position of 3 full turns from closed, and start it up! Once it has warmed up a bit, I adjust the mixture screw to "best idle" and then reset the idle speed. Then the mixture again and then the idle speed. After a third time, it's idling fairly smoothly at around 850 rpm. I couldn't get it to idle below around 1,000 rpm before.
I don't have a rolling road, and it's getting dark, so no time for a test drive. I switch it off before it overheats, and I'll try it again tomorrow.
